BYD Ti 7 Side Storage Box Installation Guide (Official Maremlyn Video Tutorial)

Why Add a Side Storage Box to BYD Ti 7

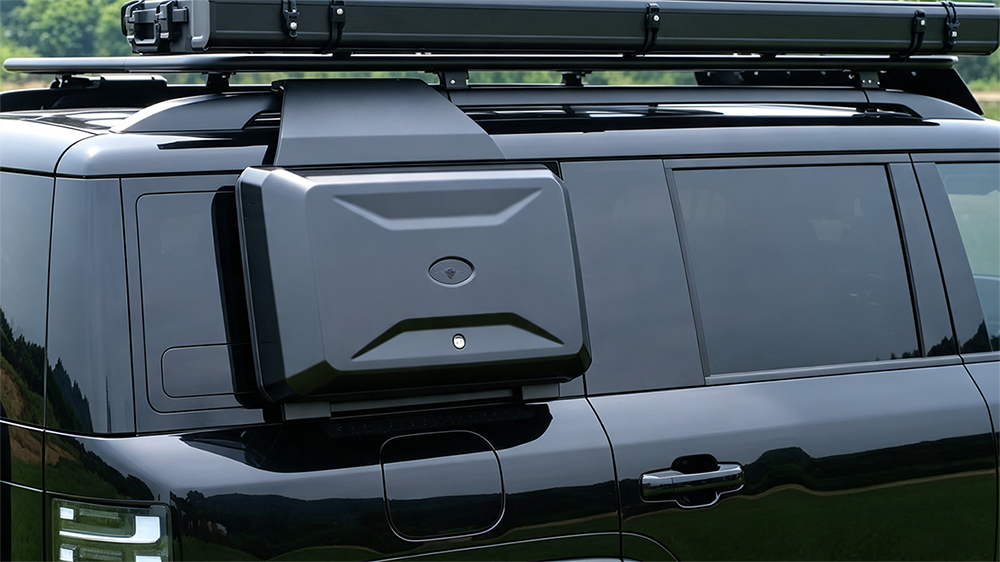

The BYD Ti 7 is built for the road — but when you head out on a long trip or an overland adventure, interior space fills up fast. A side storage box (also called a side bag or "small backpack" style cargo box) mounts to the side of the vehicle's roof rack and gives you a dedicated, lockable compartment for the gear you need most:

• Recovery and emergency tools
• Charging cables and adapters
• Camping and outdoor gear
• Wet or dirty items you don't want inside the cabin

Because the box sits outside the vehicle, you keep your boot space free for daily use while keeping essential gear within arm's reach. This guide walks through the complete installation, based on the official Maremlyn installation demonstration, so you can mount your box quickly, securely and without scratching your original roof rack.


Installation Steps (as demonstrated in the official video)

Step 1 — Cut and apply the sponge strip

Cut the sponge strip to match the length of the back edge of the box, then paste it firmly along that edge. This cushions the box and prevents rattling and vibration during driving.

Step 2 — Attach the back plane

Place the back plane on the box. Two screw lengths are used here:

• The top two positions use the long hex screws.
• The bottom two positions use the shorter hex screws.

Tighten all four screws so the back plane sits flush and stable.

Step 3 — Protect the roof rack contact surface

Apply a sponge pad to the contact surface of each mounting bracket. This step prevents the bracket from scratching the original car luggage (roof) rack.

Step 4 — Install the first bracket

Install the first bracket onto the roof rack, positioning it as close to the rear of the car as possible. Starting from the rear gives you maximum adjustment room later.

Step 5 — Test-fit and check door clearance

Compare the bracket position and adjust it so the box, once mounted, does not block the door when opened. Dry-fit the box here — this check is what separates a clean install from an annoying one.

Step 6 — Install the second bracket

Install the second bracket and align both brackets evenly on the rack so the box will sit level.

Step 7 — Mount the box and adjust position

Place the box onto the brackets and slide it into the position you confirmed in Step 5.

Step 8 — Install the screws

Once the location is confirmed, install the screws to fix the box securely to the brackets.

Step 9 — Lock all screws after adjustment

After the final position check, lock all screws firmly. Give every fixing point a second pass — this is the step that keeps the box rock-solid at highway speed.

Step 10 — Install the buckles and finish

Install the two buckles of the box to cinch it tight, then put the label on. Installation complete.




Pro Tips for a Clean Install

1. Pre-assemble on the ground — attach the sponge strip, back plane and sponge pads before climbing onto the roof.
2. Position toward the rear first — starting with the bracket as close to the rear of the car as possible gives you room to slide the box forward for door clearance.
3. Never skip the sponge pads — they are what protect your original roof rack from scratches.
4. Two people make it easier — one lifts, one aligns; it takes roughly 15–20 minutes in total.
5. Re-torque after your first drive — vibration can loosen fixings; check all screws after the first trip.


FAQ

Will the side storage box fit all BYD Ti 7 trims?

The box is designed to mount on the BYD Ti 7 roof rack system. Fitment can vary slightly by trim and rack configuration — contact Maremlyn with your vehicle details to confirm compatibility before ordering.

Does installation require drilling or modifying the car?

No. The box mounts onto the existing roof rack using brackets and screws — no drilling, cutting or permanent modification to the vehicle.

Can one person install it?

Yes, but a second person is strongly recommended for lifting and aligning the box onto the roof. Expect about 15–20 minutes with two people.

Will the box block the door?

No — provided you follow Step 5 and adjust the bracket position so the box clears the door opening, as shown in the video.

What are the two different screw lengths for?

The two long hex screws fix the top of the back plane, and the two shorter hex screws fix the bottom. Using the correct length at each position keeps the back plane flush and prevents interference.

Watch the Full Installation Video

Video: BYD Ti 7 Side Storage Box Installation Demonstration Channel: Maremlyn (Guangzhou Yangdugang Auto Accessories Co., Ltd.) Duration: 2:43 Watch on YouTube: https://www.youtube.com/shorts/VrSBBaqsPuM
